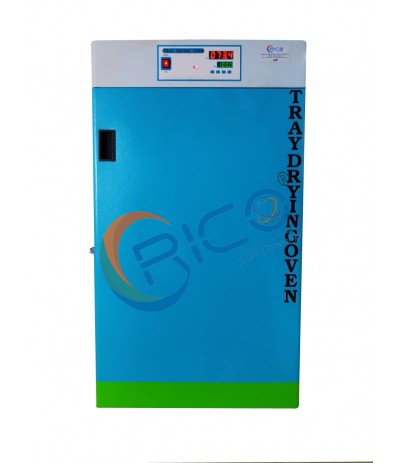

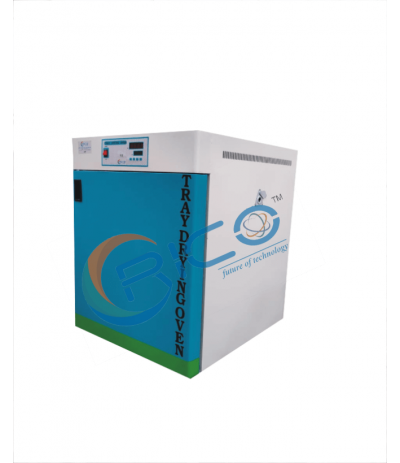

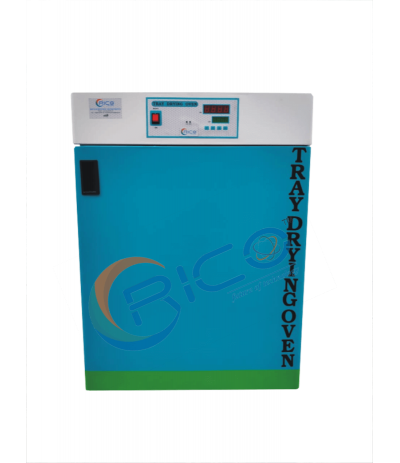

Tray Dryer

RICO produces vacuum tray dries for drying sensitive materials, which are easily solved, polymerize or worse under high temperature. The heat-sensitive material can be dried at low temperatures under vacuum, because the environmental pressure under the vapor pressure of the contained water or solvents decreases. Oxidation or contamination is eliminated by air. Ideally suited for dry holes such as hollow fibers, medical devices, chemical salts, fine chemicals, dice, glutular products, pharmaceuticals and food extracts (gluten, glues, pepsin), rubber explodes etc.

Drying down the vacuum is also environmentally friendly as evaporated solvents can easily be re-condensed. These solvents can be recycled again or can be solved without any problem.

Special Features

  • Temperature up to 3500C
  • Microprocessor based controller
  • Dial type pressure gauge (Digital pressure gauge as an option)
  • Pressure release valve in the steam line.
  • Doors have hinged with silicon gaskets
  • Equipped with vacuum brake valve and drain valve
  • Built-in timer and touch-button control allows quick and simple temperature setting.

Applications

  • Preheating Process
  • Drugs, chemical, powder drying
  • Sterilizing
  • Glassware Drying

Technical Specifications

Model:

RSI/TD-2418

Number of Trays

12 Trays

Tray Size in inch

24x18x2

Dummy Shelves

1

Trays per shelves

1

Temp. Range

Up to 350 deg.C

Construction

Inner :- Stainless Steel (304)

Outer :- GIPC

Doors

Mild Steel , w/ inter lock & glass wool insulation

Hinges

Stainless Steel

Heating Material

Water / Fluid

Heating Shelves

SS / Hollow Pad type, amazed for essential heat transfer

Trays

Food Grade Stainless Steel

Insulation

Thick glass wool

Controls

PID Controller

Temp. Display

LED/LCD Display

Vacuum gauge

The dial type on the vacuum chamber

Temperature Indicator

Digital

Pressure release valve

Yes

Vacuum break valve

Yes

Limit Switch

Yes

Accessories

Caster wheels

Power supply

220/240 Volts AC

Optional

- Dot Matrix Printer interface
- Temperature chart recorder
- PLC Controller
- Stainless steel outer cabinet
- Audio / visual alarm
- IQ, OQ, PQ and DQ documentation
- Extra shelves
- Heating Thermostat
- NABL Certification
- Manufacturer calibration certificate
